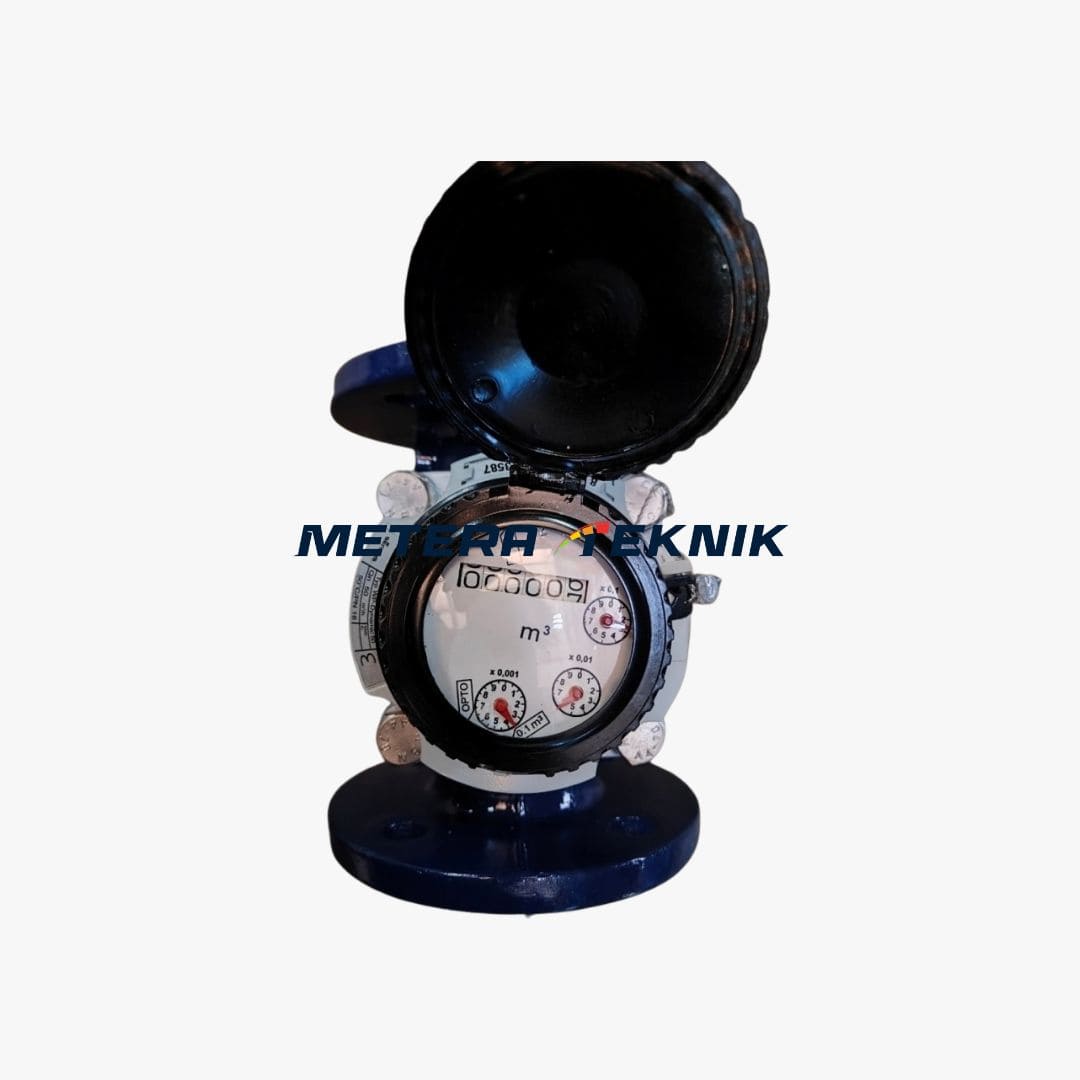

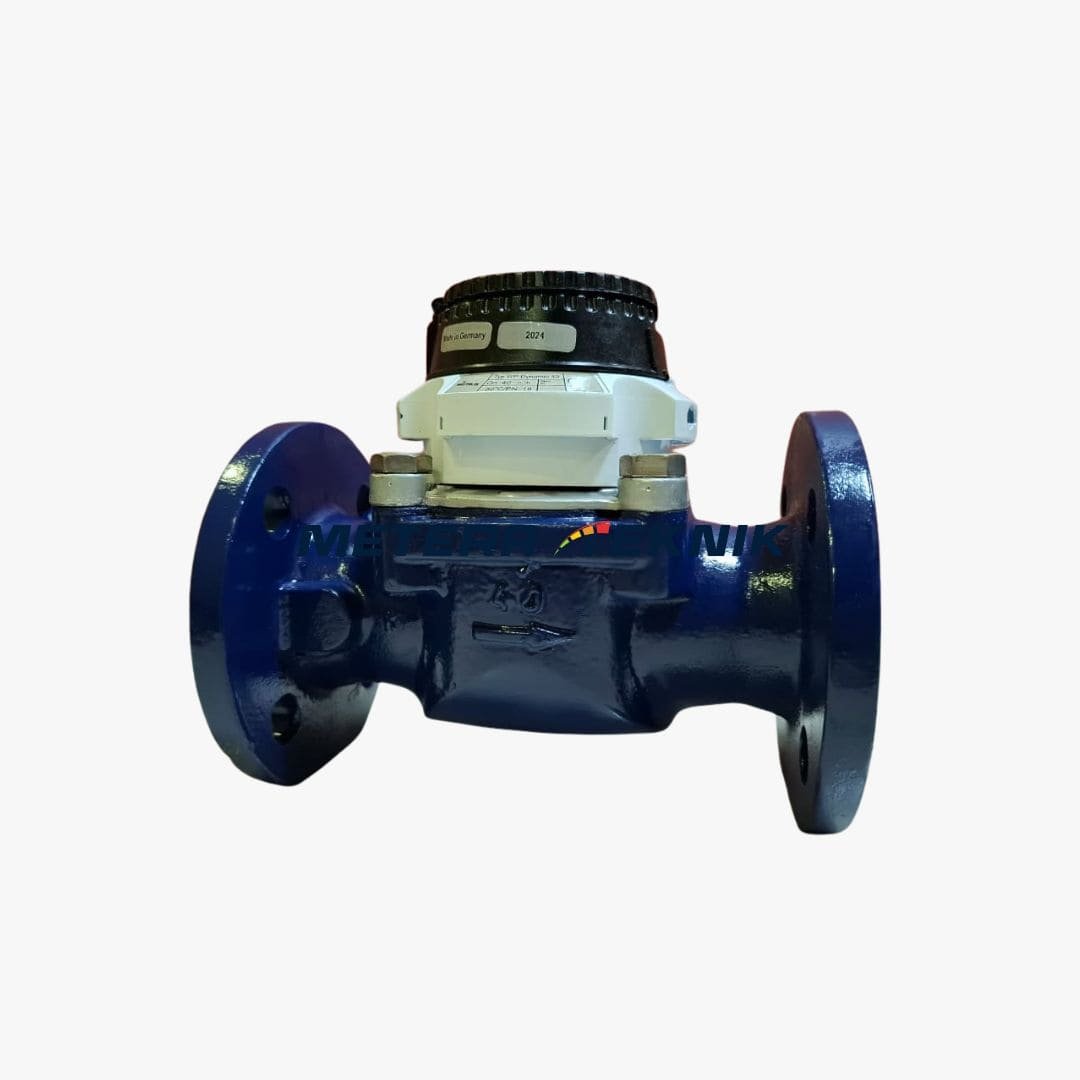

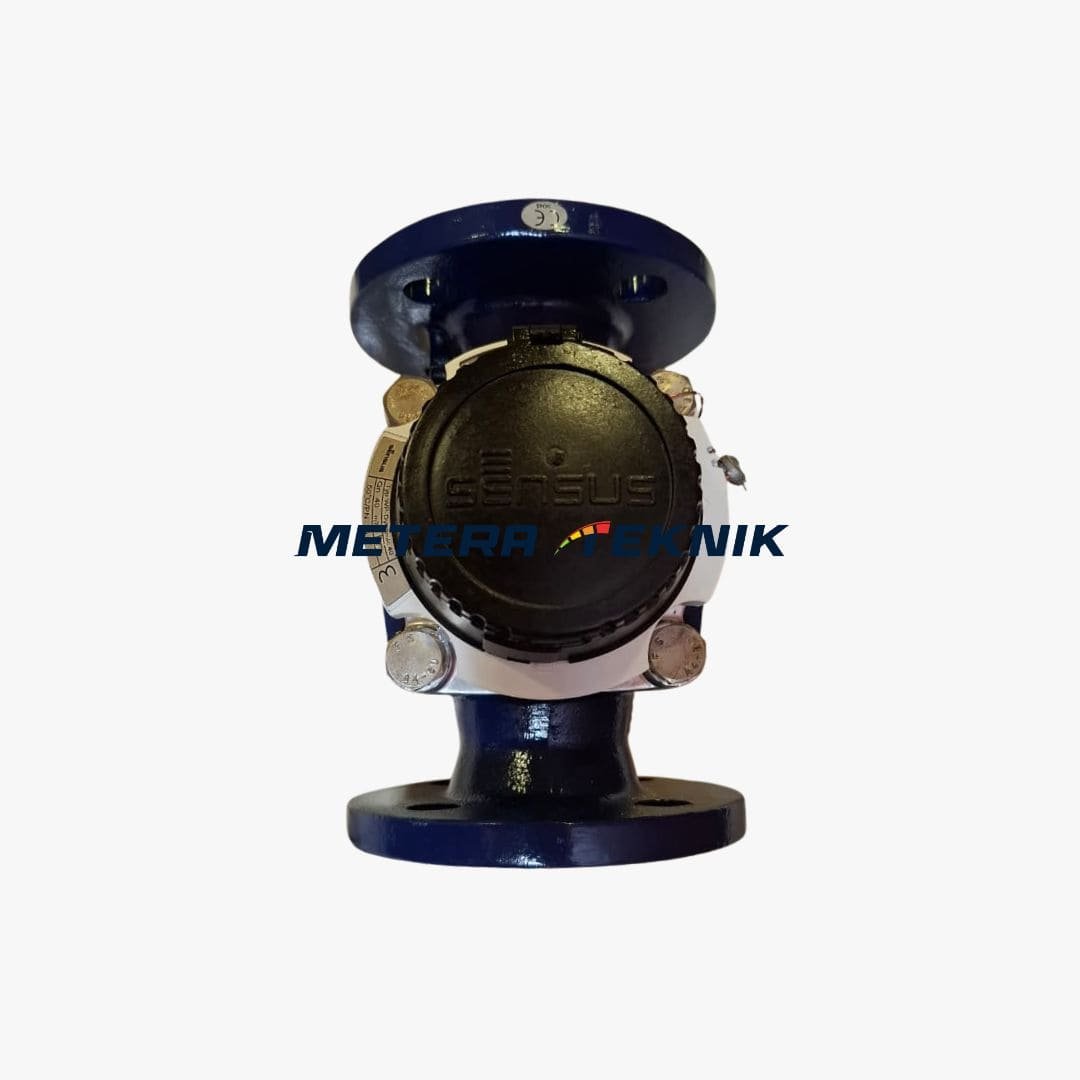

Water Meter Sensus Model Wp-Dynamic up to 50 ºC Size 1.5 Inch

Water Meter Sensus Model Wp-Dynamic up to 50 ºC Size 1.5 Inch

Product information

Sensus WP-Dynamic 1,5 inci (DN40) adalah meteran air tipe turbin untuk aliran air dingin hingga 50°C (PN16). Meter ini memiliki akurasi tinggi (±2%) sesuai standar ISO 4064, ideal digunakan pada utilitas air maupun keperluan industri. Konstruksi kokoh dan tahan korosi memastikan kinerja yang andal dalam penggunaan jangka panjang.
Application:

  • Measurement of high, relatively constant flow rates, e.g. behind pumps

Available options:

  • Supports up to 3 pulsers (1 x OD, 2 x RD) without breaking the approval seal.
  • Equipped with a 1/4” connection port for pressure sensors.
  • Compatible with three different types of electronic registers.
  • For cold water meters with pressure rating PN 40, please refer to the special leaflet for more details.

Spesifikasi Produk

  • Water Meter Sensus Model Wp-Dynamic up to 50 ºC Size 1.5 Inch (Dn 40mm) PN 16
  • Meter Size : 1.5 Inch (DN 40 mm)
  • Continuous flow (±2%)  QN : 40  m³/h
  • Minimum flow (±5%)  : 0.30  m³/h
  • Transitional flow (±2%) : 0.8  m³ /h
  • Smallest reading : 0.0005  m³
  • Max Reading : 1000000  m³
    image.png 46.86 KB
