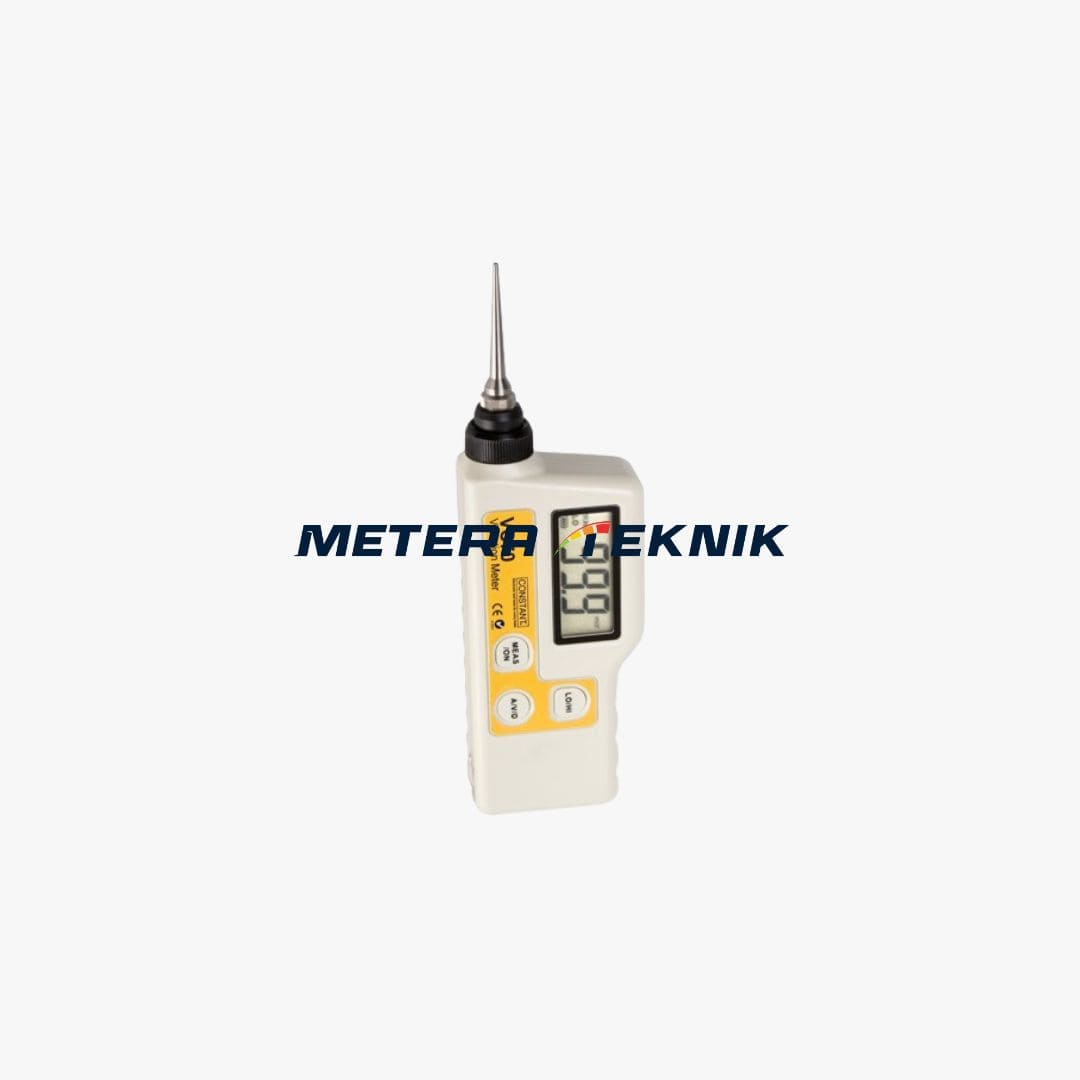

CONSTANT VC70 - VIBRATION METER vibrasi
Product information
Constant Portable Vibration Meter VC70 adalah alat ukur getaran portabel yang dirancang untuk memantau dan menganalisis getaran mesin secara akurat. Alat ini sangat ideal untuk mendukung program pemeliharaan mesin dan pemantauan kondisi mesin di berbagai industri, termasuk listrik, perminyakan, kimia, teknik, dan metalurgi.
Spesifikasi Produk
Model: Constant Portable Vibration Meter VC70
Measurement Functions : Acceleration, Velocity, Displacement
Acceleration Range: 0 ~ 199.9mm/s² (0 ~ 2.0m/s²: ±10% accuracy, >2.0m/s²: ±5% accuracy).
Velocity Range: 0 ~ 199.9mm/s RMS (0 ~ 2.0mm/s²: ±10% accuracy, >2.0mm/s²: ±5% accuracy).
Displacement Range: 0 ~ 1.999μm Peak to Peak (0 ~ 20µm: ±10% accuracy, >20µm: ±5% accuracy).
Frequency Range:
- Acceleration: 1kHz ~ 10kHz.
- Velocity: 10Hz ~ 1kHz.
- Displacement: 10Hz ~ 1kHz.
Display: 3½ digits, 1999 counts.
Power Source: 9V Battery.
Battery Life: Approximately 25 hours of continuous use.
Hold Function: Maintains reading for 1 minute after MEAS button release.
Dimensions: H185 x W68 x D30mm.
Weight: Approximately 230g.
Accessories Included: Hard Case, Short Probe, Long Probe, Soft Pouch, Battery, User Manual, Constant Certificate.
Application Industries: Power Generation, Oil & Gas, Chemical, Engineering, Metallurgy.
